OpenVidu Meet

OpenVidu Meet is a fully featured video conferencing application built with Angular, Node.js, and LiveKit. This repository provides both a Community Edition (CE) and a Professional Edition (PRO) with advanced features.

Table of Contents

1. Architecture Overview
2. Prerequisites
3. Getting Started
4. Development
   • Development Mode
   • Manual Development Setup
5. Building
6. Testing
7. Documentation
8. Production Deployment
9. Project Structure
10. Using the meet.sh Script

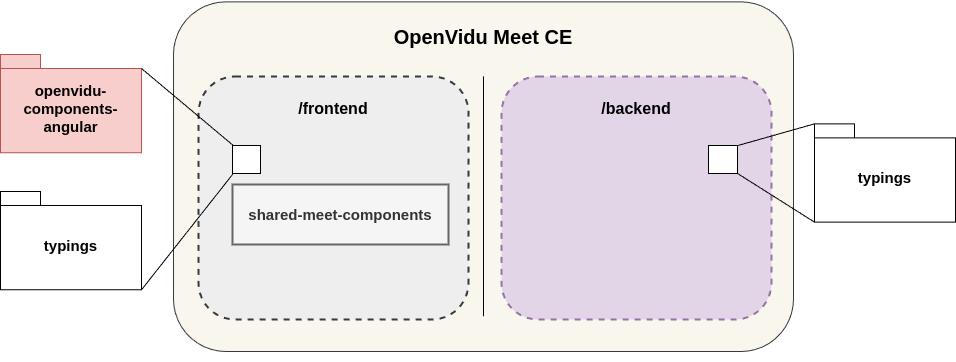

Architecture Overview

The OpenVidu Meet application is a monorepo managed with pnpm workspaces and consists of multiple interconnected packages:

Core Components

• Frontend (frontend/): Angular 20 application providing the user interface

  • shared-meet-components: Reusable Angular library with shared components for administration and preferences
  • Integrates openvidu-components-angular for core video conferencing functionality

• Backend (backend/): Node.js/TypeScript REST API server

  • Manages rooms, participants, recordings, and authentication
  • Serves the compiled frontend in production

• Typings (typings/): Shared TypeScript type definitions used across frontend and backend

• Webcomponent (frontend/webcomponent/): Standalone web component version of OpenVidu Meet

• TestApp (testapp/): Testing application for development and validation

Prerequisites

Before starting, ensure you have the following installed:

• Node.js: Version 22 or higher
• pnpm: Package manager (will be installed automatically by meet.sh if missing)
• LiveKit: For local testing (optional)

  curl -sSL https://get.livekit.io/cli | bash


Getting Started

The simplest way to get started is using the meet.sh script:

# Clone the repository
git clone https://github.com/OpenVidu/openvidu-meet.git
cd openvidu-meet

# Install all dependencies
./meet.sh install

# Start development mode with hot-reload
./meet.sh dev

Access the application at http://localhost:6080

Development

Development Mode

The recommended way to develop is using the integrated development mode that watches all components:

./meet.sh dev

This command starts concurrent watchers for:

• openvidu-components-angular: Core Angular components library
• Typings: Shared type definitions with automatic sync
• Backend: Node.js server with nodemon auto-restart
• Frontend: Angular application with live reload
• REST API Docs: OpenAPI documentation generation

Note

The backend uses backend/.env.development for environment variables during development. Configure your LiveKit credentials there:

LIVEKIT_URL=ws://localhost:7880
LIVEKIT_API_KEY=your-api-key
LIVEKIT_API_SECRET=your-api-secret

Manual Development Setup

If you prefer more granular control:

# Install dependencies
./meet.sh install

# Build shared typings (required first)
./meet.sh build-typings

# In separate terminals:
# Terminal 1 - Backend
cd backend
pnpm run start:dev

# Terminal 2 - Frontend
cd frontend
pnpm run dev

# Terminal 3 - Typings watcher (optional)
cd typings
pnpm run dev

Important

Shared Typings: The typings/ package contains types shared between frontend and backend. When you modify these types in development mode, they are automatically synced to both projects. Always build typings before building other components.

Building

Build all components in the correct order:

# Build everything (typings → frontend → backend → webcomponent)
./meet.sh build

# Or build individual components:
./meet.sh build-typings          # Build shared types
./meet.sh build-webcomponent     # Build web component only
./meet.sh build-testapp          # Build test application

CI/CD Optimized Builds

The meet.sh script supports flags to optimize CI/CD pipelines:

# Install dependencies once
./meet.sh install

# Build typings once
./meet.sh build-typings

# Build webcomponent (skip already completed steps)
./meet.sh build-webcomponent --skip-install --skip-typings

# Run tests without reinstalling
./meet.sh test-unit-webcomponent --skip-install

Available flags:

• --skip-install: Skip dependency installation
• --skip-build: Skip build steps
• --skip-typings: Skip typings build (use when already built)

Testing

OpenVidu Meet includes comprehensive testing capabilities:

Unit Tests

# Backend unit tests
./meet.sh test-unit-backend

# Webcomponent unit tests
./meet.sh test-unit-webcomponent

End-to-End Tests

# Run E2E tests for webcomponent (installs Playwright automatically)
./meet.sh test-e2e-webcomponent

# Force reinstall Playwright browsers
./meet.sh test-e2e-webcomponent --force-install

TestApp

The repository includes a dedicated testing application for manual testing:

# Build and start the test application
./meet.sh start-testapp

The test app will be available at http://localhost:5080

Note

The TestApp requires LiveKit CLI to be installed and configured for full functionality.

Documentation

Generate Documentation

# Generate webcomponent documentation
./meet.sh build-webcomponent-doc [output_dir]

# Generate REST API documentation
./meet.sh build-rest-api-doc [output_dir]

Documentation files will be generated in:

• Webcomponent: docs/webcomponent-*.md (events, commands, attributes)
• REST API: backend/public/openapi/public.html

If you specify an output directory, the documentation will be copied there.

Production Deployment

Using Docker

Build and run the production container:

# Build the Docker image (using meet.sh)
./meet.sh build-docker openvidu-meet-ce

# Build Docker image for demos (different BASE_HREF)
./meet.sh build-docker openvidu-meet-ce --demos

# Run the container
docker run \
  -e LIVEKIT_URL=<your-livekit-url> \
  -e LIVEKIT_API_KEY=<your-livekit-api-key> \
  -e LIVEKIT_API_SECRET=<your-livekit-api-secret> \
  -p 6080:6080 \
  openvidu-meet-ce

Manual Production Start

# Build all components
./meet.sh build

# Start in production mode
./meet.sh start --prod

# Or start in CI mode
./meet.sh start --ci

Environment Variables

Configure your production environment using these key variables:

• LIVEKIT_URL: WebSocket URL for LiveKit server
• LIVEKIT_API_KEY: LiveKit API key
• LIVEKIT_API_SECRET: LiveKit API secret
• SERVER_PORT: Backend server port (default: 6080)
• NODE_ENV: Environment mode (development, production, ci)

For a complete list of environment variables, see backend/src/environment.ts.

Project Structure

openvidu-meet/
├── meet.sh                          # Main build and development script
├── pnpm-workspace.yaml              # pnpm workspace configuration
├── package.json                     # Root package with scripts
│
├── typings/                         # Shared TypeScript definitions
│   ├── src/
│   │   ├── api-key.ts
│   │   ├── auth-config.ts
│   │   ├── participant.ts
│   │   ├── event.model.ts
│   │   └── ...
│   └── package.json
│
├── frontend/                        # Angular frontend application
│   ├── src/                        # Main application source
│   ├── projects/
│   │   └── shared-meet-components/ # Reusable Angular library
│   └── webcomponent/               # Web component build
│
├── backend/                         # Node.js/Express backend
│   ├── src/
│   │   ├── controllers/            # REST API controllers
│   │   ├── services/               # Business logic
│   │   ├── middleware/             # Express middleware
│   │   └── environment.ts          # Environment configuration
│   ├── openapi/                    # OpenAPI specifications
│   └── public/                     # Static files (includes built frontend)
│
├── testapp/                         # Testing application
│   ├── src/
│   └── public/
│
├── docker/                          # Docker build files
│   └── create_image.sh
│
├── docs/                            # Generated documentation
├── scripts/                         # Build and utility scripts
└── openvidu-meet-pro/              # Professional Edition (separate license)

Using the meet.sh Script

The meet.sh script is the main entry point for all development and build tasks:

Command Reference

# Help
./meet.sh help

# Installation
./meet.sh install                    # Install all dependencies

# Building
./meet.sh build                      # Build all components
./meet.sh build-typings              # Build shared types only
./meet.sh build-webcomponent         # Build webcomponent only
./meet.sh build-testapp              # Build test application

# Development
./meet.sh dev                        # Start development mode with watchers

# Testing
./meet.sh test-unit-backend          # Run backend unit tests
./meet.sh test-unit-webcomponent     # Run webcomponent unit tests
./meet.sh test-e2e-webcomponent      # Run webcomponent E2E tests

# Running
./meet.sh start --prod               # Start in production mode
./meet.sh start --ci                 # Start in CI mode
./meet.sh start-testapp              # Start test application

# Documentation
./meet.sh build-webcomponent-doc [dir]  # Generate webcomponent docs
./meet.sh build-rest-api-doc [dir]      # Generate REST API docs

# Docker
./meet.sh build-docker <image-name> [--demos]  # Build Docker image

Examples

# Full development workflow
./meet.sh install
./meet.sh dev

# CI/CD optimized workflow
./meet.sh install
./meet.sh build-typings
./meet.sh build-webcomponent --skip-install --skip-typings
./meet.sh test-unit-webcomponent --skip-install

# Production build and deploy
./meet.sh build
./meet.sh start --prod

# Build Docker image
./meet.sh build-docker openvidu-meet-ce

# Build Docker image for demos
./meet.sh build-docker openvidu-meet-ce --demos

Technologies

• Frontend: Angular 20, Material Design, TypeScript
• Backend: Node.js, Express, TypeScript
• WebRTC Infrastructure: LiveKit
• Package Manager: pnpm (workspaces)
• Build Tools: Angular CLI, TypeScript Compiler, Rollup (webcomponent)
• Testing: Jest (unit), Playwright (E2E), Mocha
• Documentation: OpenAPI/Swagger, Custom generators

Contributing

Contributions are welcome! Please ensure that:

1. All tests pass: ./meet.sh test-unit-backend && ./meet.sh test-unit-webcomponent
2. Code is properly formatted
3. TypeScript types are correctly defined in typings/
4. Documentation is updated as needed

License

Licensed under the Apache License, Version 2.0. See LICENSE for details.
