OpenVidu Meet

Table of Contents

1. Architecture Overview
2. Development
   • 1. Clone the Repository
   • 2. Prepare the Project
   • 3. Start the Backend
   • 4. Start the Frontend
3. Testing
4. Build (with Docker)
   • Build the Backend Image
   • Run the Backend Container

Architecture Overview

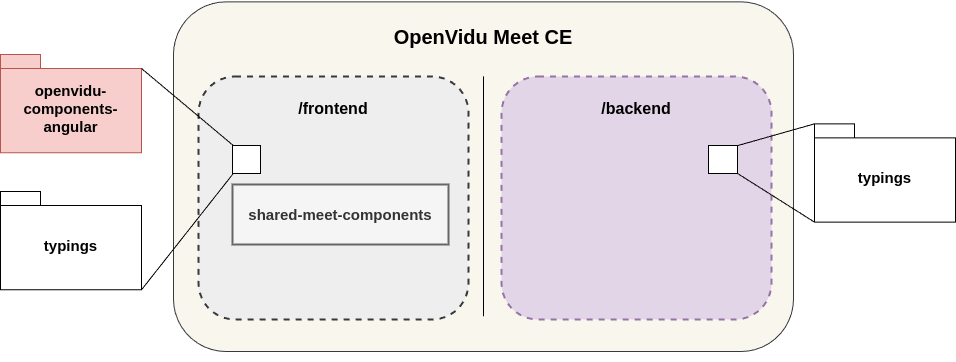

The OpenVidu Meet application is composed of two main parts (frontend and backend) that interact with each other to provide the video conferencing service. The following diagram illustrates the architecture of the application:

• Frontend: The frontend is a web application built with Angular that provides the user interface for the video conferencing service. This project contains the shared-meet-components subproject, which is a library of shared components that share administration and preference components.

  Also, the frontend project installs external dependencies on the following libraries:

  • openvidu-components-angular: A library of Angular components that provide the core functionality of the video conferencing service.
  • typings: Common types used by the frontend and backend.

• Backend: The backend is a Node.js application.

  • typings: Common types used by the frontend and backend.

Development

For development purposes, you can run the application locally by following the instructions below.

1. Clone the OpenVidu Meet repository:

git clone https://github.com/OpenVidu/openvidu-meet.git

2. Prepare the project

For building types and install dependencies, run the following command:

cd openvidu-meet
./prepare.sh

3. Start the Backend

Note

For development purposes, the backend application uses the backend/.env.development file to load environment variables. You can customize the values in this file to suit your local development environment.

cd backend && \
npm run start:dev

Note

The types under typings are shared between the frontend and backend projects. If you need to update the comon types, remember doing it in the typings project.

Every time you make changes to the types, the backend process will automatically invoke the syncing task to update the types in the frontend and backend projects. So, you don't need to worry about updating the types manually.

4. Start the Frontend

Opening a new tab, under root directory:

cd frontend && \
npm run build:dev

This command will build the frontend application and move the files to the backend project. It will also listen for changes in the frontend application and rebuild the application when changes are detected.

After running these commands, you can access the frontend application at http://localhost:6080.

Testing

This repository offers a testing application that allows you to test the OpenVidu Meet.

To run the testing application, follow these steps under the root directory:

1. Install the dependencies:

cd testapp && \
npm install

2. Start the testing application:

npm run start

After running these commands, you can access the testing application at http://localhost:5080.

Build (with docker)

Build the backend image

cd docker
./create_image.sh openvidu-meet-ce

Run the backend container

Once the image is created, you can run the container with the following command:

docker run \
  -e LIVEKIT_URL=<your-livekit-url> \
  -e LIVEKIT_API_KEY=<your-livekit-api-key> \
  -e LIVEKIT_API_SECRET=<your-livekit-api-secret> \
  -p 6080:6080 \
  openvidu-meet-ce

You can check all the available environment variables in the environment file.
